Oracle Database Appliance
Oracle Database Appliance is the easiest and most affordable way for organizations to run Oracle databases and applications in remote and edge computing environments. Customers reduce Oracle Database deployment times and management workloads using a prebuilt integrated system with management automation. As demonstrated in IDC’s business value study, Oracle Database Appliance allows customers to grow revenue and control costs, delivering up to a 498% return on investment (ROI) over five years.
Key differentiators
Simpler and faster to install Prebuilt integrated systems with automated setup, allows customers to start running databases and applications in as little as 30 minutes, — an average of 10X faster than do-it-yourself (DIY) solutions, according to an analysis by DSC.
Optimized for maximum performance
Tightly integrated Oracle Database Appliance hardware and software is optimized to achieve peak performance for customer applications.
Affordable pricing for lower costs
Low entry pricing and flexible CPU licensing with a minimum of two CPU cores reduce customer total cost of ownership (TCO).
Oracle Cloud integration safeguards customer data
Oracle Cloud Infrastructure (OCI) integration enables IT staffs to back up and archive data in the cloud, while easily moving workloads to the cloud when needed.
Single-vendor support enhances security
Oracle supports all hardware and software with quarterly patching that is simpler to deploy than multivendor DIY solutions.
Product View
Oracle Database Appliance X8-2S
Entry-level system minimizes deployment costs
The most affordable Oracle engineered system is fully integrated and optimized to run a single Oracle Database instance.
Dense design reduces space requirements
Compact, 2 rack unit (RU) servers with 16 Intel® Xeon® processor cores minimize customer IT footprints in space-sensitive remote and edge environments.
Expandable memory supports larger databases
Starting with a standard configuration of 192 GB, customers can expand memory up to 384 GB to support larger databases and memory-intensive applications.
NVMe storage maximizes performance
Built-in 12.8 TB of raw NVMe storage capacity improves performance and reliability compared to similar systems configured with conventional solid-state drives.
Network options simplify integration
A choice of 10GBase-T or 10/25 GbE SFP28 networking connections allows easy integration with existing customer infrastructure.
Learn more : Datasheet: Oracle Database Appliance X8-2S (PDF)
Oracle Database Appliance X8-2M
Midrange solution simplifies consolidation
Oracle Database Appliance X8-2M makes it easy for medium-sized organizations to consolidate Oracle Database instances for OLTP, data warehouses, and mixed workload environments in remote offices
Optimized price/performance reduces costs
With 32 Intel® Xeon® CPU cores and up to 768 GB of memory, Oracle Database Appliance X8-2M provides 2X the compute power and up to 2X the memory of the X8-2S system without doubling the cost.
NVMe storage maximizes performance
12.8 TB or 76.8TB of raw NVMe storage capacity increases database scale and performance compared to similar systems configured with conventional solid-state drives.
Network options simplify integration
A choice of 10GBase-T or 10/25 GbE SFP28 networking connections enables easy integration with existing customer infrastructure.
Learn more : Datasheet: Oracle Database Appliance X8-2M (PDF)

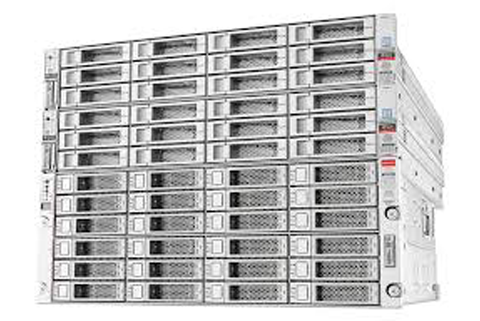

Oracle Database Appliance X8-2-HA
Redundant architecture increases uptime
Server-level and component level redundancy with shared storage enables customers to have access to crucial data on a 24/7 basis while protecting databases from unplanned downtime.
Oracle Database software improves availability
Optional Oracle Real Application Clusters (RAC) and Automatic Storage Manager (ASM) enable customer databases to continue to operate across server or storage device failures.
Oracle software improves business continuity
Optional Oracle Active Data Guard and Oracle Golden Gate enable business continuity and disaster recovery across multiple data centers to protect customers against site-wide outages.
High-performance design accelerates demanding workloads
Oracle Database Appliance X8-2-HA includes 64 Intel® Xeon® processor cores, 768 GB of memory expandable to 1.5 TB, and 10GBase-T or 10/25 GbE SFP28 networking connections so medium-size businesses can maximize consolidated workload performance.
Storage expansion
46 TB of high-performance solid-state disk (SSD) storage in the base system enables high performance and customers can upgrade storage to a total of 368 TB of SSD or a combination of 92 TB of SSD with 504 TB of hard disk storage to support diverse requirements.
